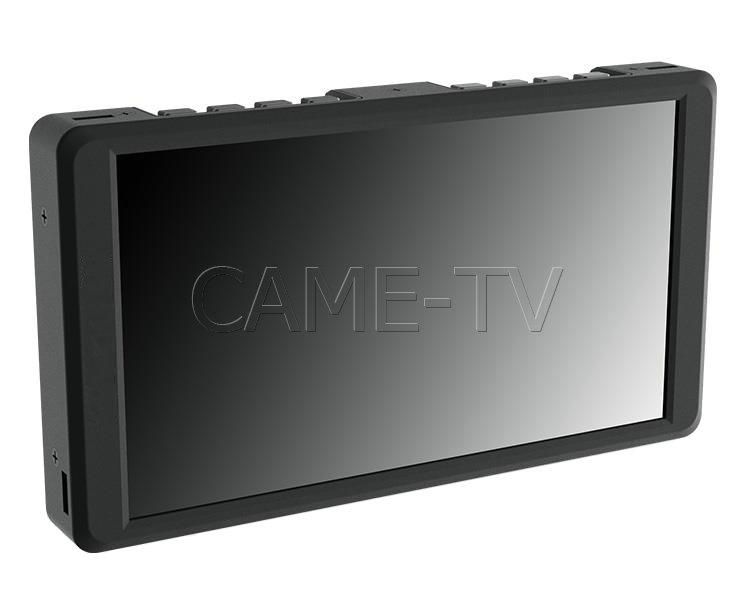

CAME-TV 5.7" 4K On-camera Monitor with HDMI Input/ Output IPS Full HD 1920x1080 4K-S57

SKU: 4K-S57
€258.88 incl. VAT
€217.55 excl. VAT

Availability: delivery time 5 to 10 days

Get your items faster
  • CAME-TV 5.7" 4K On-camera Monitor with HDMI Input/ Output IPS Full HD 1920x1080 4K-S57

Came TV

CAME-TV 5.7" 4K On-camera Monitor with HDMI Input/ Output IPS Full HD 1920x1080 4K-S57

SKU: 4K-S57
€258.88 incl. VAT
€217.55 excl. VAT

Availability: delivery time 5 to 10 days

Get your items faster
  • Resolution 1920x1080 pixels
  • Viewing Angle 85°/85°(L/R) 85°/85°(U/D)
  • HDMI supported input and output
  • With excellent extra features
  • Description
  • Gallery
  • Reviews

CAME-TV 5.7" 4K On-camera Monitor with HDMI Input/ Output IPS Full HD 1920x1080 4K-S57

Key Features

  • Brightness Histogram
  • Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)
  • False Colors
  • Zebra Exposure (1-100IRE adjustable)
  • Check Field (Red, Green, Blue, Mono)
  • Camera Mode
  • Anamorphic Mode (1.3x, 2.0x, 2.0x mag)
  • Image Flip (H, V, H/V)
  • Image Freeze
  • Center Marker
  • Screen Marker (80%,85%,90%,93%,96%, 2.35:1)
  • Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
  • Color Temperature Adjustment
  • Nine Grid (Zoom one of the images to realize the full screen) (Nonsupport in 4K input)
  • Zoom (4X, 9X, 16X) (Nonsupport in 4K input)
  • Aspect Ratio (Nonsupport in 4K input)
  • Pixel to Pixel (Nonsupport in 4K input)
  • Zoom All (Nonsupport in 4K input)
  • U/D Zoom (Nonsupport in 4K input)
  • L/R Zoom (Nonsupport in 4K input)





Technical Specs

Display
Model 4K-S57
Screen Size 5.7" IPS
Resolution 1920x1080 pixels
Pixel Pitch 0.0657x0.0219 mm
Aspect Ratio 16:9
Brightness 460cd/m²
Contrast Ratio 1400:1
Backlight LED
Viewing Angle 85°/85°(L/R) 85°/85°(U/D)


Input
1 X HDMI HDMI


Output
1 X HDMI HDMI


Audio
Audio Stereo Headphone


HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)


General
Input Voltage DC7~24V
Power Consumption ≤8W
Working Temperature -20°C~55°C
Storage Temperature -30°C~65°C
Mounting 1/4"-20 Thread Socket
Battery Plate F970 (Standard); D28S/D54, LP-E6, U60(Optional)
Unit Size 148Lx82Hx18D (mm)
Unit Weight 280g/310g(With F970 Plate)





What's included:

CAME-TV 5.7" 4K On-camera Monitor with HDMI Input/ Output IPS Full HD 1920x1080 4K-S57
