PDMOVIE Remote Air Pro PD3-P3 - Three Channel Wireless Follow Focus

SKU: PD3-P3
€2,997.61 incl. VAT
€2,519.00 excl. VAT

Availability: delivery time 5 to 15 days

Get your items faster
  • PDMOVIE Remote Air Pro PD3-P3 - Three Channel Wireless Follow Focus

PDMOVIE Remote Air Pro PD3-P3 - Three Channel Wireless Follow Focus

SKU: PD3-P3
€2,997.61 incl. VAT
€2,519.00 excl. VAT

Availability: delivery time 5 to 15 days

Get your items faster
  • Compatible with Apple iPhone 6, 6s, 6 Plus, 6s Plus, 7, 7 Plus, and iPod Touch.
  • Intuitive software app and future firmware updates.
  • Small & lightweight motors.
  • Communicates through 2.4 Ghz wireless protocol.
  • Ergonomic handgrip.
  • Up to 3 channels available.
  • 20 User-selectable communication channels.
  • Numerous lens presets for popular cinema lens models.
  • 3 Speed Modes.
  • Motor mounts to either 19mm rods or 15mm rods (with included adapter).
  • Power your Apple device through the 5v USB power outlet (cable supplied).
  • Rugged weatherproof design.
  • Description
  • Gallery
  • Reviews

PDMOVIE Remote Air Pro - PD3-P3

including 3 motors


The design has been improved but the simplicity of the PDMOVIE remote air first generation still remains.
A unibody concept is used to gain the sleekest of designs with the REMOTE AIR PRO, not a single screw can be seen on the remote control body resulting in a true sense of comfort and style.


High-precision Brushless Motor

The new German imported, high-precision brushless motor runs smoothly, even at high speed rotation, scarcely making a sound. It is PDMOVIES most professional standard motor. Due to the fine internal structure, the controller motor accommodates both receiver and driver, making it lighter, thinner and as compact as possible.


Connectivity

The new REMOTE AIR PRO is built to withstand harsh environments, including extreme weather, heavy shaking and long-term operation. With the use of the new aviation locking plugs it can maintain the stability and safety of performance for a long time. The cable is designed for power and signal transmission for convenience.


Two types of Motor available

PDMOVIE wireless follow focus

The AIR PRO REMOTE offers two kinds of motors. Only one motor/receiver is required for single channel use and the standard motors can be added for dual and triple channel use.

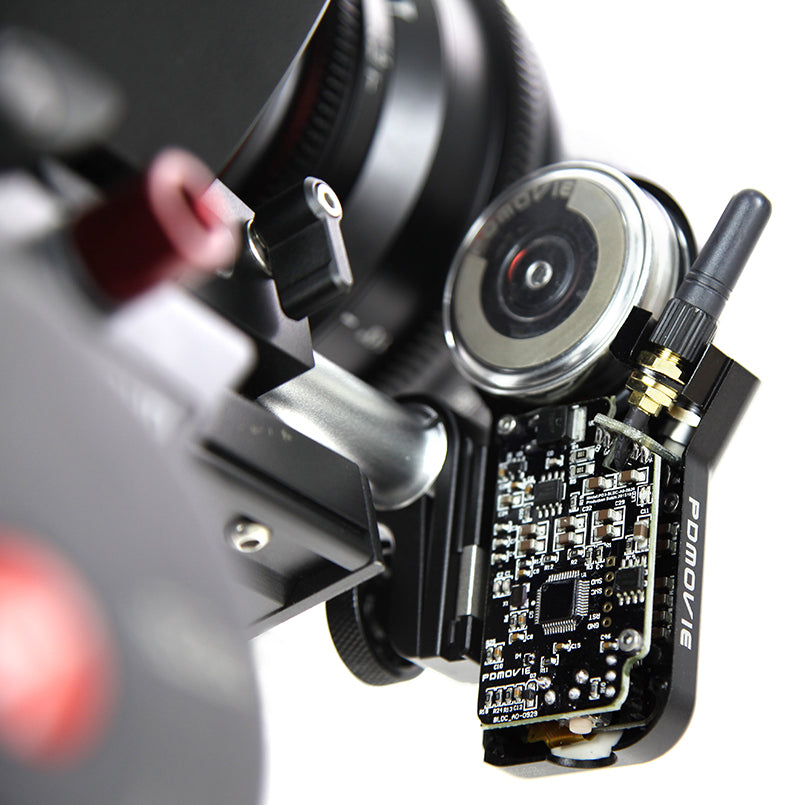

The controller motor is a state of the art brushless motor with a built in receiver, reducing size and weight.
The standard motor is dedicated to focus, zoom or iris control.
The cable powers and transmits from the controller to the standard motor. By chaining the motors you can have unlimited in series connections, giving you unlimited channels making this wireless follow focus ideal for 3D filming operation where everything needs to be doubled.


Lighter, thinner and more robust

PDMOVIE wireless follow focus

We have controlled the weight of the motor, weighing a modest 170g. Thats 430g lighter compared to the 1st generation EF motor and 600g lighter compared to the max motor. The high torque, robust motor, much stronger than prevoius designs, can operate any lens on the market from affordable stills lenses up to high-end cine lenses.

It is PDMOVIE's thinnest, lightest motor ever. Using high-end brushless motors for a silent and accurate result it is perfect for gimbal and steadicam work thanks to its low-profile design measuring only 19mm thin.


Long battery life

PDMOVIE wireless follow focus

The REMOTE AIR PRO controller has a built in large capacity battery which can last for up to 60 hours. An added feature includes the ability to use a mobile power supply when your power is low.
The controller also has the ability to charge your IOS device, When the controller is low on battery it will cease to charge your device but continue to operate. These features were designed for the operators peace of mind.


REMOTE AIR PRO Compatibility

PDMOVIE wireless follow focus

The remote is compatible with iPhone 6 s / 6 s (6) Plus (6 Plus)/iPod touch, or use a WATCH to operate. In order to use a different model of mobile phone all you need to do is to replace a small accessory clamp.


Fine sensitivity for highly precise and accurate focus pulling

PDMOVIE wireless follow focus

The new REMOTE AIR PRO controller hand wheel has a resolution of 7200 compared to the first generation which has a resolution of 500 making it 13.4 times more precise. It offers fine sensitivity for highly precise and accurate focus pulling. A slight rotation can be clearly displayed on the OLED screen, even the subtlest of twists will be recognised.




Convenient Lens data preservation and updating

PDMOVIE wireless follow focus

The REMOTE AIR APP has a large database of lens parameters which is constantly being updated, a vast number of stills and cine lenses are available for your reference and convenience.
Accessible from your account on different IOS systems enabling you to back up and share your lenses to the database.




Faster wireless connectivity, more stable signal transmission

PDMOVIE wireless follow focus

Through the APP, your IPHONE is connected to the controller through Bluetooth 4.2 wireless technology and the controller is connected to the controller motor through the 2.4GHZ wireless technology and the full duplex mode.
As a result the signal is constant, without delay, supporting a transmission distance of up to 100M.


Hardware and Software Interaction

PDMOVIE wireless follow focus

The design allows for a comfortable experience. The system has two methods to drive the motor by using the rotary control hand wheel or by using the touchscreen interface on your IOS device.
The new APP interface eliminates human error as you can mark the lens parameters directly on the APP for complete precision. There is also the option for a more traditional approach with the luminous marker ring to mark your lens points.


2D, 3D also apply

PDMOVIE wireless follow focus

REMOTE AIR PRO can not only control each channel separately but also can be used to switch the two motors to the same channel as the 3D synchronization.


Future, unlimited expansion, unlimited potential

To make the REMOTE AIR PRO unparalleled in quality we have achieved improved hardware capabilities, added custom presets, reduced side and weight whilst still maintaining maximum strength and durability. Future updates will be available for the firmware. Experience the potential of the REMOTE AIR PRO!


Features:

• Compatible with Apple iPhone 6, 6s, 6 Plus, 6s Plus, 7, 7 Plus, and iPod Touch
• 6000 mAH controller battery (5x capacity of the iPod Touch)
• Motor and transmitter combined into a single device
• Communicates through 2.4 Ghz wireless protocol
• New and improved motor design
• Ergonomic handgrip
• Up to 3 channels available
• 20 User-selectable communication channels
• Numerous lens presets for popular cinema lens models
• Intuitive software app and future firmware updates
• 3 Speed Modes
• Motor mounts to either 19mm rods or 15mm rods (with included adapter)
• Power your Apple device through the 5v USB power outlet (cable supplied)
• Rugged weatherproof design

Specifications:

Wireless Control Unit:
• Weight: 0.264kg / 0.58 lb
• Dimension: 5.07 x 3.78 x 2.71 In
• Compatibility: iPhone 6/6s, iPhone 6Plus/6sPlus, iPod Touch
• Power: 5v Charging Input/Output
• Auxiliary Power: Power Apple device via included Lighting Cable
• Display: OLED
• Sync: Bluetooth (Apple Device) 2.4 Ghz Wireless (Receiver)
• Control: Zoom, Iris, Focus (Single Function per motor)

Controller Motor(PD3-CM):
• Weight: 0.22kg / 0.47 lb
• Dimension: 4.3 x 2.7 x 1.2 In.
• Power:12-18V Power Input
• Gearing:0.4m, 0.5m, 0.6m gears included
• Speeds: Three selectable torque levels
• Mount:15mm or 19mm (15mm requires included adapter)
• Safety Function:Emergency motor halt function integrated



What's Included:

1x Integrated hand control unit
1x Receiver / Master motor(PD3-R)
2x Slave motor(PD3-R)
1x D-Tap Power Cable (6 pin)
1x USB Charging Cable(4pin)
1x Lightning to USB connecting Cable
1x USB Charger
1x iPhone 6 / 6s Clamp
1x iPhone 6 Plus / iPhone 6s Plus Clamp
1x iPod Touch Clamp
1x Gear Kit(0.4M, 0.5M, 0.6M)
1x 15mm / 19mm Adapter Ring
3x Glow in the Dark Marking Disk
3x Antenna
1x 3mm Hex Key(M5 screw – 1pc)
1x Lanyard
1x Hard case
